Average Particle Size: TBD



Elemental Composition: Currently under analysis. Older data for a similarly labeled ink is available from Forte et al., Sci. Tot. Environment, 2009, 407, 5997



(values in ng/g unless otherwise stated)

Aluminum (5868 ± 249 μg/g)

Barium (0.549 ± 0.011 μg/g)

Cadmium (465 ± 41)

Cobalt (35.0 ± 1.7)

Chromium (841 ± 39)

Copper (10.0 ± 1.0 μg/g)

Iron (77.8 ± 4.0 μg/g)

Mercury < LoQ

Manganese (1287 ± 68)

Nickel (200 ± 15)

Lead (70.7 ± 4.7)

Antimony (101 ± 8)

Strontium (0.488 ± 0.033 μg/g)

Vanadium (1588 ± 124)

:



Crystal Structure

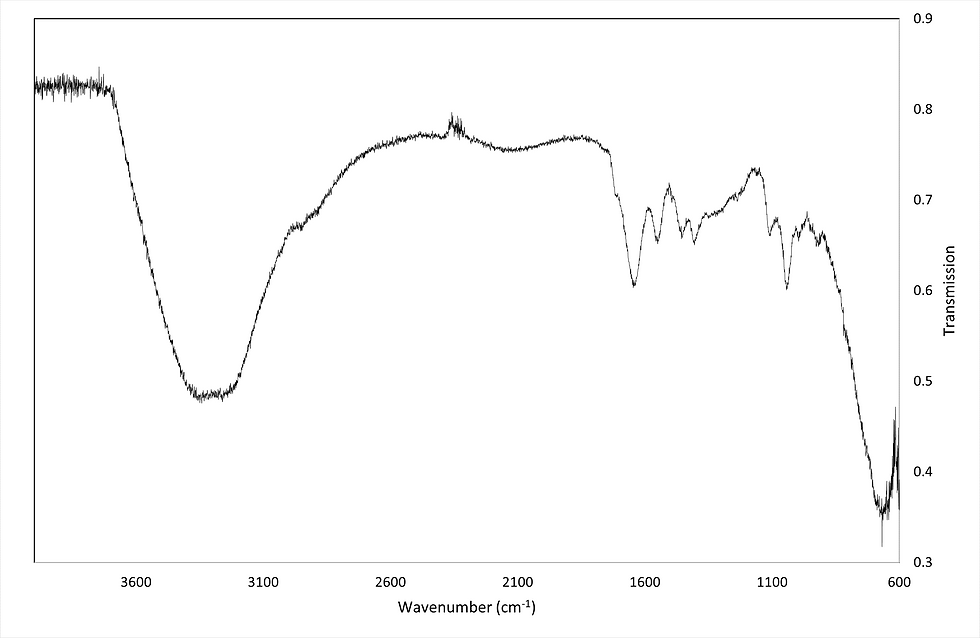

Major FTIR peaks: 3350 (broad), 3220 (broad), 1622, 1626, 1588, 1580, 1574, 1471, 1336, 1036 cm-1



Mass(es) of Major Molecular Components: TBD
